5.1v 1.7A 7.3kgcm 104oz.In 42HS60a17 Nema 17 Hybrid Stepper Motor

Name: 51v 17A 73kgcm 104ozIn 42HS60a17 Nema 17 Hybrid Stepper Motor
Brand: Jkongmotor
Price: 5.5 USD

5.1v 1.7A 7.3kgcm 104oz.In 42HS60a17 Nema 17 Hybrid Stepper Motor Manufactures

Brand Name : Jkongmotor

Model Number : JK42HS60-1704A

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$5.5~US$35

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Name : stepper motor

Leads : 4

Current : 1.7A

Holding Torque : 7.3kg.cm

Step Angle : 1.8 degree

Shaft : 5mm

Phase Resistance : 3Ω

Phase Inductance : 6.2mH

voltage : 5.1v

phase : 2

Contact Now

5.1v 1.7A 7.3kg.cm 104oz.in 42HS60 Nema17 hybrid stepper motor

Bipolar stepper motor, four-wire. Has a resolution of 200 steps per revolution (1.8 degrees). Powered by 5.1 V, draws 1700 mA per coil. Torque is 7.3 kg*cm (0.73 Nm). Dimensions are 42 x 42 x 60 mm (NEMA 17).

Resolution: 200 steps/rev (1.8°)
Rated voltage: 5.1 V
Current consumption per coil: 1.7 A
Coil resistance 3 Ω
Winding inductance: 6.2 mH
Holding torque 7.3 kg*cm (0.73 Nm)
Shaft diameter: 5 mm
Weight: 500 g
Standard: NEMA 17
Dimensions: 42 x 42 x 60 mm (without shaft)

1.Genaral Specification of stepper motors:

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	28N (20mm from the flange)
Max. axial force	10N

2.Electrical Specification of Nema17 stepper moror:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm	Kg
JK42HS25-0404	1.8	25	0.4	24	36	1.8	4	75	20	0.15
JK42HS28-0504	1.8	28	0.5	20	21	1.5	4	85	24	0.22
JK42HS34-1334	1.8	34	1.33	2.1	2.5	2.2	4	120	34	0.22
JK42HS34-0406	1.8	34	0.4	24	15	1.6	6	120	34	0.22
JK42HS34-0956	1.8	34	0.95	4.2	2.5	1.6	6	120	34	0.22
JK42HS40-0406	1.8	40	0.4	30	30	2.6	6	150	54	0.28
JK42HS40-1684	1.8	40	1.68	1.65	3.2	3.6	4	150	54	0.28
JK42HS40-1206	1.8	40	1.2	3	2.7	2.9	6	150	54	0.28
JK42HS48-0406	1.8	48	0.4	30	25	3.1	6	260	68	0.35
JK42HS48-1684	1.8	48	1.68	1.65	2.8	4.4	4	260	68	0.35
JK42HS48-1206	1.8	48	1.2	3.3	2.8	3.17	6	260	68	0.35
JK42HS60-0406	1.8	60	0.4	30	39	6.5	6	280	102	0.5
JK42HS60-1704	1.8	60	1.7	3	6.2	7.3	4	280	102	0.5
JK42HS60-1206	1.8	60	1.2	6	7	5.6	6	280	102	0.5

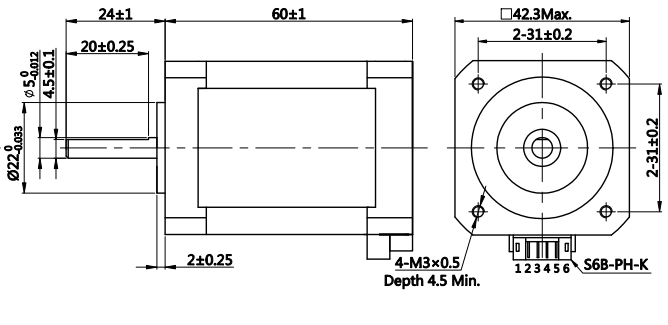

3.Drawing of JK42HS60 step motor:

5.1v 1.7A 7.3kgcm 104oz.In 42HS60a17 Nema 17 Hybrid Stepper Motor
4.Produce equipment:

5.Production Process:

6.Advantages of hybrid Stepper Motor

The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

7.Applications of 42mm electric motor:

printers
CNC equipment
3D printers
lasers
manipulators
