Nema 23 Gearbox Stepper Motor 5.5kg.Cm 2.8A With Reduction Ratio 15:1

CHANGZHOU JKONGMOTOR CO.,LTD
Contact Now

Nema 23 Gearbox Stepper Motor 5.5kg.Cm 2.8A With Reduction Ratio 15:1

Brand Name : Jkongmotor

Model Number : JK57HS41-2804SG15

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US $10 - 60 / Units

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 30000 pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Phase : 2-phase

Type : Hybrid

Step Angle : 1.8 Degree

Holding Torque : 5.5kg.cm

Motor length : 41mm

suitable motor : nema 23 stepping motor

stepper driver model : DM542

Current : 2.8A

voltage : 1.96v

speed : 0-1000

Resistance : 0.7Ω

Inductance : 1.4mH

Contact Now

nema 23 gearbox stepper motor 5.5kg.cm 2.8A with reduction ratio 15:1

The Nema23 Stepper Motor Bipolar with 15:1 Planetary Gearbox is a stepper motor with 41 mm body and 2.8A rated current, integrated a planetary gearbox of 15:1 gear ratio. It's a good solution to applications with limited space but need low speed and/or high torque.

Genaral Specification of 57mm stepper motor gear reducer:

Housing Material Metal
Bearing at Output Ball Bearings
Max.Radial Load(12mm from flange) ≤80N
Max.Shaft Axial Load ≤30N
Radial Play of Shaft (near to Flange) ≤0.06mm
Axial Play of Shaft ≤0.3mm
Backlash at No-load 1.5°
  • Step Angle : 1.8°
  • Step Angle Accuracy : ±5%(full step,no load)
  • Resistance Accuracy : ±10%
  • Inductance Accuracy : ±20%
  • Temperature Rise : 80℃max
  • Ambient Temperature : -20℃~+50℃
  • Insulation Resistance : 100 MΩ Min. ,500VDC
  • Dielectric Strength : 500VAC for 1minute
  • Shaft Radial Play : 0.02Max. (450g-load)
  • Shaft Axial Play : 0.08Max. (450g-load)
  • Max. radial force : 28N (20mm from the flange)
  • Max. axial force : 10N

NEMA23 Hybrid Stepping Motor Specifications :

Model No. Step Angle Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque # of Leads Detent Torque Rotor Inertia Mass
( °) (L)mm A Ω mH kg.cm No. g.cm g.cm Kg
JK57HS41-2804 1.8 41 2.8 0.7 1.4 5.5 4 250 150

0.5


Specifications of Nema23 step motor with gearbox:

Reduction ratio 3 7.5 12.5 15 25 30 50 75 90 100 120 150
Number of gear trains 2 3 4 5
Length(L2) mm 32&42 42
Peak torque kg.cm 50
Backlash at Noload 4deg 3.5deg 3deg 2.5deg

Details of 57mm Geared Stepper Motor :

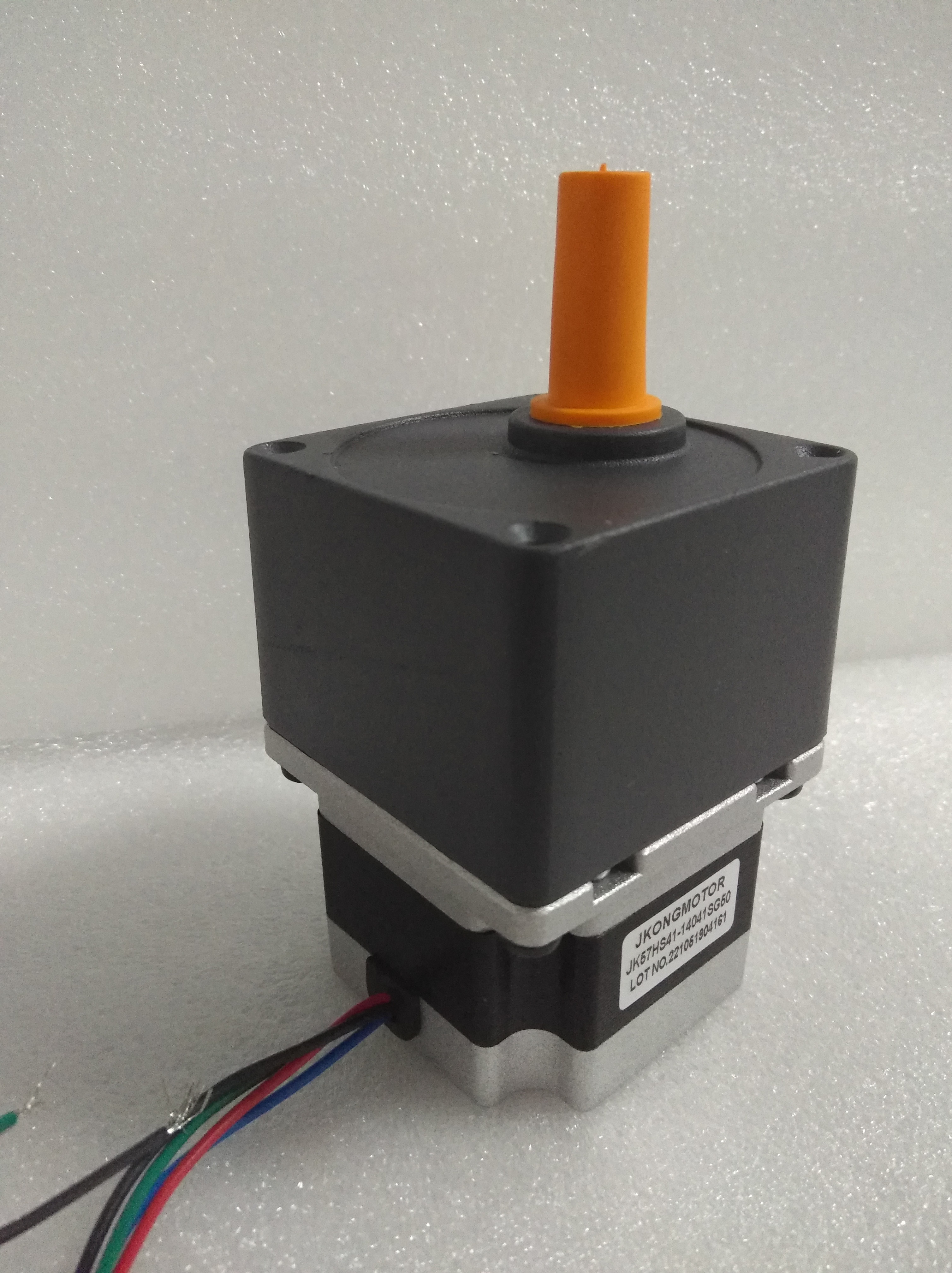

Nema 23 Gearbox Stepper Motor 5.5kg.Cm 2.8A With Reduction Ratio 15:1

Nema 23 Gearbox Stepper Motor 5.5kg.Cm 2.8A With Reduction Ratio 15:1

Stepper Motor Applications:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.

We also can customized motor according to your special requirements.

There are few different types of stepper motor with gearbox.

You can choose reducer ratio.

Nema 23 Gearbox Stepper Motor 5.5kg.Cm 2.8A With Reduction Ratio 15:1

The common product include hybrid stepper motor,linear stepper motor,Planetary gear reducer stepper motor,

stepper motor with brake,brushless dc motor,dc motor,ac servo motor,spindle motor,stepper driver,bldc driver,

planetary gear reducer bldc motor,couplings,pulley,power supply and so on.
