Worm Gear Step Motor 4 Leads Nema17 Small Geared Stepper Motor 5.5kg.Cm 1.5A Current For Industrial
1.Genaral Specification of stepper motors:
- Step Angle(degrees): 1.8 Degree
- Phase: 2
- Type: Hybrid
- Model Number: NEMA17
- Model: JK42HS48-1504A-634JSX32
- Holding Torque: 5.5kg.cm;
- Current / Phase: 1.5A
- Motor length: 48mm
- Diameter of axle: 8mm
- Temperature rise: below 80 ℃
- Ambient temperature: -20 ℃ ~ + 50 ℃
- Insulation resistance: minimum 100MΩ, 500VDC
- Dielectric strength: 500VAC for 1 minute
- Shaft radial clearance: 0.02 max (450 g load)
- Shaft axial clearance: 0.08Max. (450 g load)
- Maximum radial force: 28N (20mm from flange)
- Maximum axial force: 10N
- size: Approximately 42x42x48mm
2.Electrical Specification of Nema17 stepper moror:
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| | ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm² | Kg |
| JK42HS25-0404 | 1.8 | 25 | 0.4 | 24 | 36 | 1.8 | 4 | 75 | 20 | 0.15 |
| JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.22 |
| JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.28 |
| JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | 0.35 |
| JK42HS60-1004 | 1.8 | 60 | 1.0 | 8 | 13 | 7.5 | 4 | 280 | 102 | 0.5 |

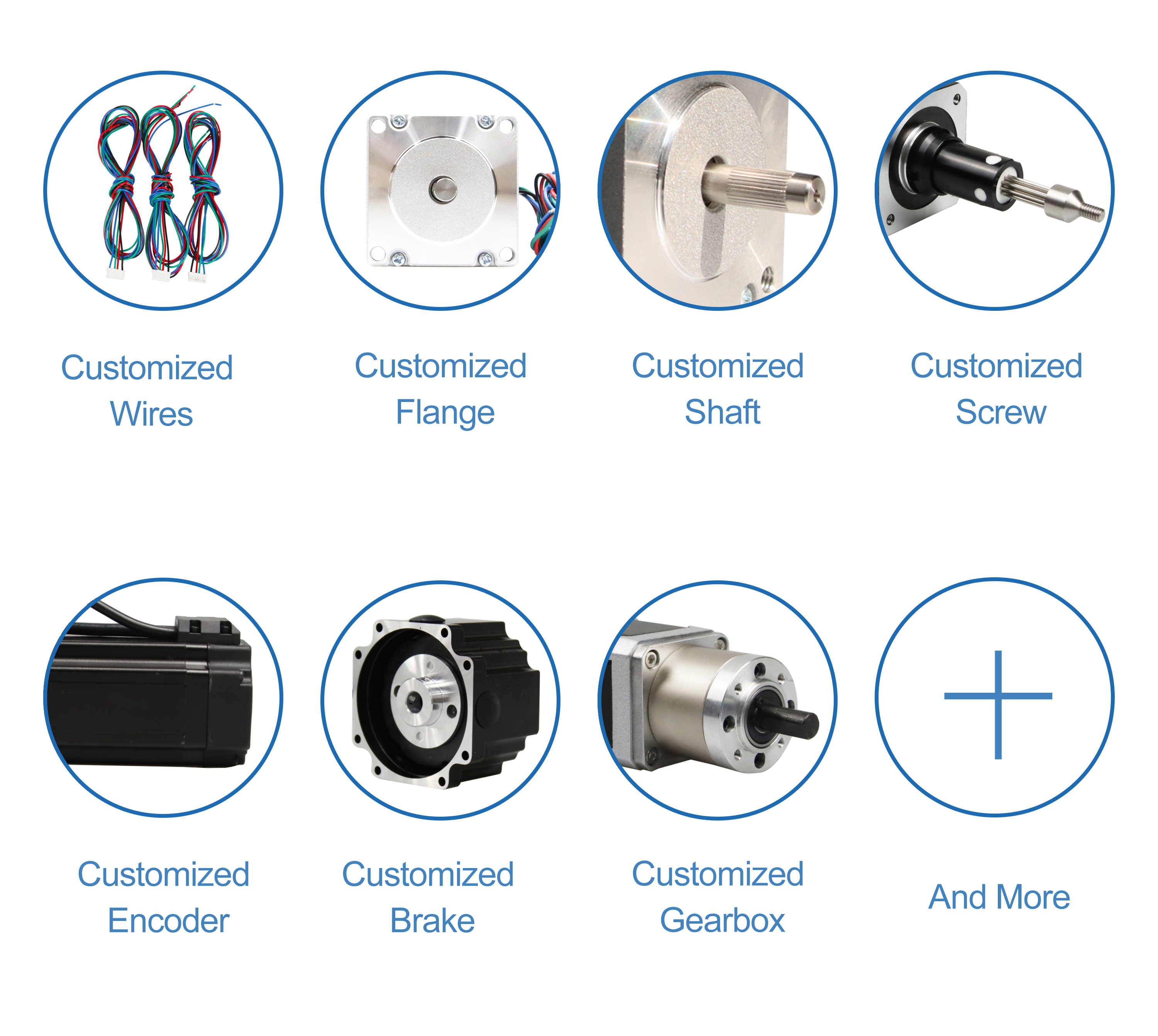

We produce gearbox ratio include 1:17, 1: 32, 1: 50.

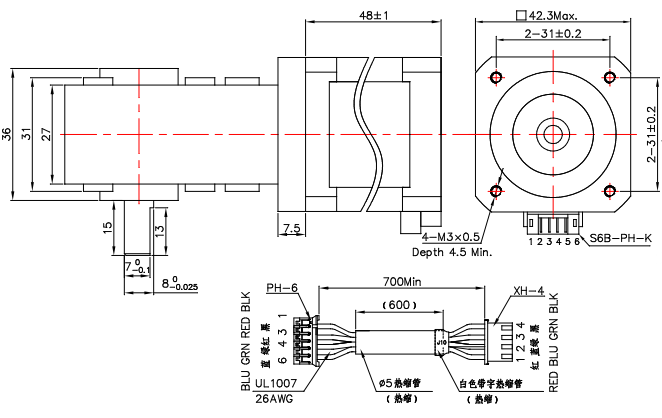

3.Drawing of JK42HS48 step motor with encoder:
4.Produce equipment:

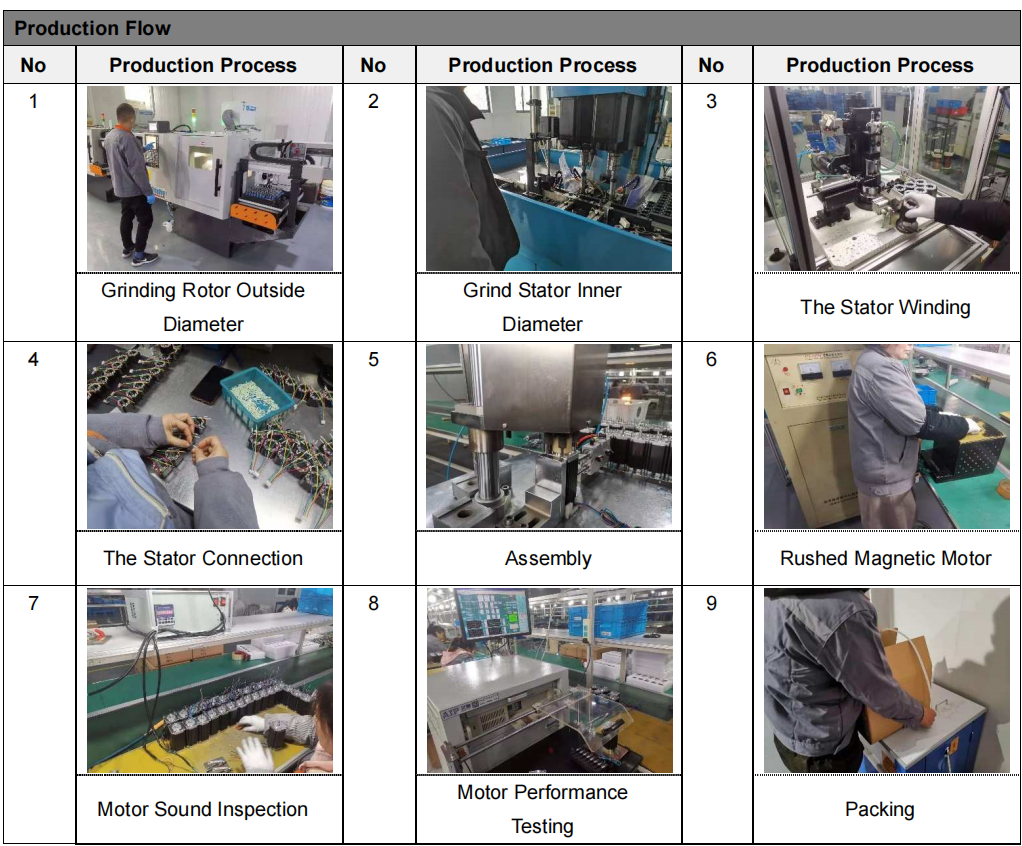

5.Production Process:
6.Advantages of hybrid Stepper Motor
The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.
7.Applications of 42mm electric motor:
As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
They are used in numeric control of machine tools.
Used in tape drives, floppy disc drives, printers and electric watches.
The stepper motor also use in X-Y plotter and robotics.
It has wide application in textile industries and integrated circuit fabrications.
The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
Stepper motors of microwatts are used in the wrist watches.
In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
