Geared Stepper Motor Single Shaft 264oz In 1.89N . M , Nema 23 stepper motor gear reducer

  • 1
  • 2

Brand Name : Jkongmotor

Model Number : NEMA23 JK57HSPLF

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$60~US$90

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Shaft : Single

Leads : 4

Current : 2.8A

Holding Torque : 1.89N.m

Step Angle : 1.8 degree

IP for Gearbox : IP65

Phase : 2

Name : gear reducer stepper motor

Contact Now

Single Shaft 264oz . In 1.89N . M Geared Stepper Motor , Nema 23 Stepper Motor

Geared Stepper Motor Nema23 264oz.in 1.89N.m With High Precision Gearbox Step Ratio 1:3

Electrical Specification of nema23 stepper motor gear reducer:


57HS Hybrid Stepping Motor Specifications:

Model No.

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
(L1)mm A Ω mH N.m No. g.cm g.cm Kg
JK57HS76-2804 76 2.8 1.1 3.6 1.89 4 600 440 1.1



NEMA23 Stepper motor with High Precision Planetary Gearbox Specifications:

Stage one stage two stage three stage
Ratio 3 4 5 8 10 12 16 16 20 25 32 40 64 100 64 80 100 120 125 160 200 256 320 512 1000
Max.input rpm(rpm)6 6000 6000 6000
Max.radial load(N) 550 550 550
Max.shaft axial load(N) 500 500 500
efficiency(%) 96 94 90
Backlash arcmin(arcmin) ≤8 ≤10 ≤12
Noise(dB) ≤60 ≤60 ≤60
Weight(kg) 3.2 3.9 4.8
Average useful life(h) ＞10000 ＞10000 ＞10000
Lubricating system long-term long-term long-term
Rotation direct input/output syntropy input/output syntropy input/output syntropy
Protection level IP65 IP65 IP65


Matching Stepper motor Driver: JKD5060S

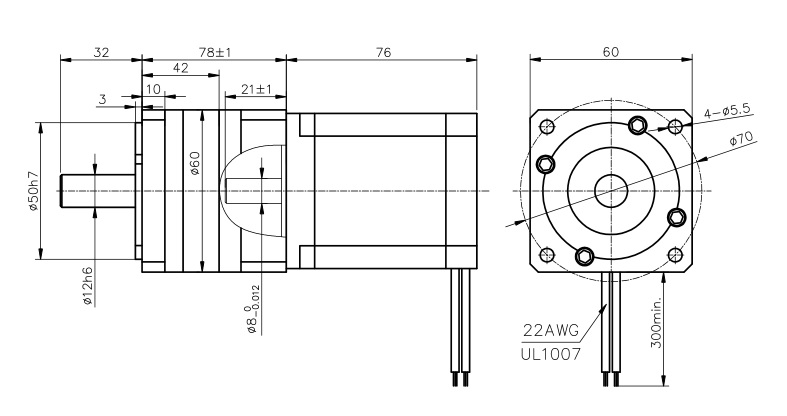

Dimension Of Geared stepper motor:

Geared Stepper Motor Single Shaft 264oz In 1.89N . M , Nema 23 stepper motor gear reducer

We can customize it according to customer's requirements.
